Kubernetes Apiserver Load Balance with Haproxy - The dirty way

Short intro

In bare-metal installations...

When you create your cluster, you wanted to have two Control Planes so you would have continuity when restarting one of the control planes, or even having one of them off for some period of time would not affect the cluster as a whole.

In theory this is fantastic, but in practice this required a little bit more work than just deploying the second control plane. The focus of this article is to answer an obvious question:

Which address you should use to balance between both control plane nodes?

The cluster looks like: server-cp-01 server-cp-02 server-node-01 server-node-02 server-node-03 server-node-04

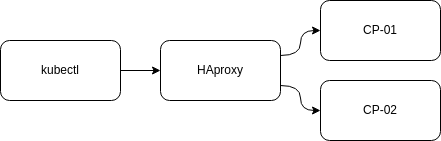

What you need is an address that should reach botth CPs in a round robin manner:


Quick and Dirty

Lets take a new address like: cluster-api
Prepare front end access on haproxy

Kubectl will make some checks on the certification of the 6443 port, including the names of the node CP you are aiming to connect, as such you may receive errors about "server-api" is not a name recognized on the certificate, for such problem, you will need to create a new certificate for the haproxy frontend with name(s) corresponding to the new API address you want to use.

First lets create an openssl request conf file to issue a new certificate -- I suggest to create at /etc/kubernetes/pki from server-cp-01 because you will need other files there, the following file:

# cat haproxy-req.conf
prompt=nodefault_md = sha256
distinguished_name = dn
req_extensions = req_ext
default_bits  = 4096
x509_extensions = v3_req
prompt = no

After, you can execute the following commands:

Create a CSR with key for HAproxy frontend section certificate
# openssl req -new -nodes -keyout haproxy-k8s-cluster.key  -out haproxy-k8s-cluster.csr -days 3650 -subj "/C=NL/ST=ZH/L=Alphen/O=SpectroNET/OU=K8s/CN=K8S API" -config haproxy-req.conf -extensions v3_req

It will result in a CSR file (Certificate Signing Request) , this file is used to issue the new certificate in the next command:

# openssl x509 -req -days 3650 -in haproxy-k8s-cluster.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out haproxy-k8s-cluster.crt -extfile haproxy-req.conf  -extensions v3_req

It will now result in the new certificate that will accept the names, IPs we wish to use. You should be able to check the resulting certificate and address with:

# openssl x509 -noout -text -in haproxy-lactea.crt | grep -F1 Alter
        X509v3 extensions:
            X509v3 Subject Alternative Name:
                DNS:cluster-api.domain-name.net, DNS:cluster-api, IP Address:

Combine the newly created certificate with signing CA and key into one file and add on haproxy frontend configuration:

# cat haproxy-k8s-cluster.crt > k8s-cluster-front.pem
# cat ca.crt >> k8s-cluster-front.pem
# cat haproxy-k8s-cluster.key >> k8s-cluster-front.pem

And at the HAproxy main configuration add:

frontend k8s_cp
    bind    *:6443 ssl crt /etc/haproxy/certs/k8s-cluster-front.pem alpn h2,http/1.1 npn h2,http/1.1
    option httplog
    default_backend                     k8s_cluster_cp
Create a simulated client at the Backend section

When reaching the apiserver , there is a 2way ssl auth connection, you can in a very quick and dirty way, extract the certificates from your client (kubectl) and add on haproxy to pretend its a kubectl query.

Considering that your ~/.kube/config file contains only one access configured, you should have only one "client-certificate-data" and one "client-key-data", as such, you can run the following. (here though I am extracting that from the /etc/kubernetes/admin.conf file on cp-01)

cat /etc/kubernetes/admin.conf | grep client-certificate-data | awk '{print $2}' | base64 -d > cluster-client.crt
cat /etc/kubernetes/admin.conf | grep client-key-data | awk '{print $2}' | base64 -d >> cluster-client.crt

If you have more than one cluster configured you can copy+paste and run:

echo "large-base64-client-certificate-data-pasted" | base64 -d > cluster-client.crt
echo "large-base64-client-key-data-pasted" | base64 -d >> cluster-client.crt

You will then need to create a complete CA identity for haproxy, as such:

cat /etc/kubernetes/pki/ca.crt > cluster-ca.crt
cat /etc/kubernetes/pki/ca.key >> cluster-ca.crt

Bring these two files to haproxy certs location and configure the backend with:

backend k8s_lactea_cp
    mode http
    server k8s-cluster-cp-01 ssl verify required ca-file /etc/haproxy/certs/cluster-ca.crt crt /etc/haproxy/certs/cluster-client.crt
    server k8s-cluster-cp-02 ssl verify required ca-file /etc/haproxy/certs/cluster-ca.crt crt /etc/haproxy/certs/cluster-client.crt
Reconfigure your access, and possibly the cluster

First thing is your own ~/.kube/config , where you read:


Or the DNS name from cp-01 or cp-02, you should now be able to change to our newly create haproxy address: or cluster-api if the DNS name is recognized (as it should):

    server: https://cluster-api:6443

And you should be able to successfully run:

[mememe@myworkstation ~]$ kubectl get nodes
NAME                 STATUS   ROLES           AGE     VERSION
server-cp-01     Ready    control-plane   3d19h   v1.27.3
server-cp-02     Ready    control-plane   38h     v1.27.3
server-node-01   Ready    <none>          3d13h   v1.27.3
server-node-02   Ready    <none>          3d13h   v1.27.3
server-node-03   Ready    <none>          3d13h   v1.27.3
server-node-04   Ready    <none>          3d13h   v1.27.3

Further you can observe (and possibly change if you wish) in the CMs from kube-system:

controlPlaneEndpoint: "cluster-api:6443"
    server: https://cluster-api:6443
If you chose to change these, remember to check if all nodes and cp are able to resolve the address added, and/or, if they are able to reach the haproxy IP


If you chose to run this configuration with HAProxy, you must be aware that you will not be able to run port forwards / redirects as is. In order for them to work you need to point to the real CP IP. Kubectl and CPs will be able to fully communicate with the cluster, but maybe other features will be missed due to haproxy in the middle.
